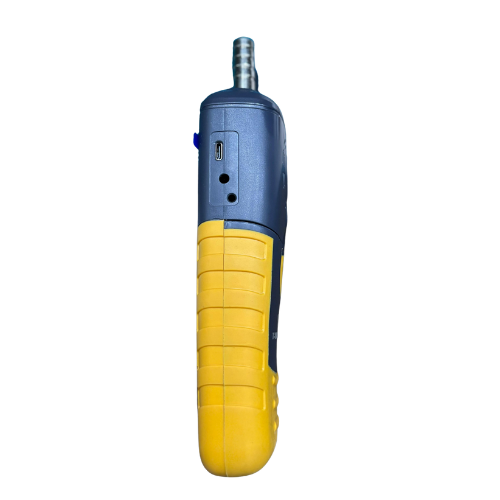

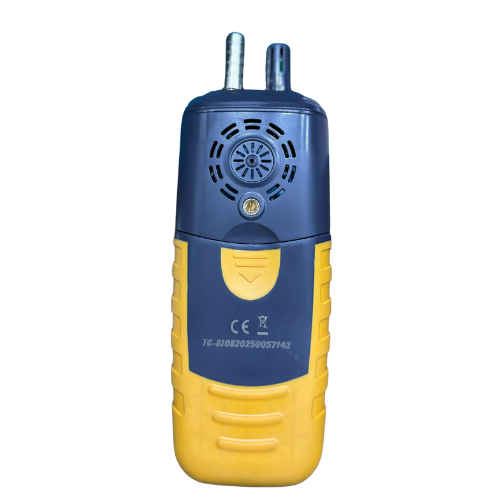

The AIRATOM 5 Channel Air Quality Meter is a portable, multi-parameter air quality monitoring device designed to measure important indoor environmental pollutants and air quality indicators. It helps users monitor carbon dioxide (CO₂), total volatile organic compounds (TVOC), particulate matter, temperature and humidity.
Equipped with a 3.2-inch TFT colour display, built-in air sampling pump, rechargeable lithium-ion battery and data recording capabilities, this air quality meter is suitable for indoor air quality assessments, building inspections, laboratories, offices, schools, factories and environmental monitoring applications.
The device supports historical data recording and CSV data export for further analysis on a computer. Adjustable alarm thresholds help users identify readings that exceed their configured limits, while customizable recording intervals support different monitoring requirements.
Key Features of the AIRATOM 5 Channel Air Quality Meter
Multi-parameter air quality monitoring: Measures CO₂, TVOC, PM1.0, PM2.5, PM10, temperature and humidity.
Carbon dioxide monitoring: Measures indoor CO₂ concentration to help assess ventilation conditions.
TVOC detection: Monitors total volatile organic compounds that may be present in indoor environments.
Particulate matter measurement: Monitors PM1.0, PM2.5 and PM10 concentrations to assess airborne particle levels.
Temperature and humidity measurement: Displays environmental temperature and relative humidity.
Active pump sampling: Built-in pump sampling draws air into the instrument; diffusion sampling is also supported.
3.2-inch TFT colour display: Presents measurement readings in an easy-to-read screen format.
Data logging and CSV export: Stores up to 10,000 groups of data and supports computer-based data analysis.
Adjustable alarm thresholds: Allows users to configure alert values for selected monitored parameters.
Rechargeable battery: Uses a removable 18650 lithium-ion battery rated at 2200 mAh.
USB Type-C interface: Supports charging and data-related connectivity as specified for the device.
Portable construction: Designed for indoor inspections and environmental measurement work across different locations.
Measurement Parameters and Applications
1. CO₂ – Carbon Dioxide Monitoring
The meter measures carbon dioxide concentration in parts per million (ppm). CO₂ readings can help users understand ventilation conditions and changes in indoor occupancy or airflow.
Typical applications: Offices, classrooms, meeting rooms, homes, laboratories and indoor ventilation assessments.
2. TVOC – Total Volatile Organic Compounds
TVOC monitoring provides an indication of the combined concentration of volatile organic compounds detected by the instrument. These compounds may originate from paints, cleaning products, adhesives, furniture, building materials and other indoor sources.
Typical applications: Indoor air quality inspections, newly renovated buildings, offices, homes and environmental assessments.
3. PM1.0, PM2.5 and PM10 Particle Monitoring
The device measures airborne particulate matter in three size categories:
PM1.0: Fine airborne particles with an aerodynamic diameter of approximately 1 micrometre or less.
PM2.5: Fine particles with an aerodynamic diameter of approximately 2.5 micrometres or less.
PM10: Particles with an aerodynamic diameter of approximately 10 micrometres or less.
These measurements help users assess airborne particle levels associated with dust, combustion, construction activity and other sources.
The supplied product information also mentions six-channel particle counting for analysing particles across different size categories. Confirm the exact particle-counting channels and size bins for the selected model before purchase.
4. Temperature and Relative Humidity
The instrument measures ambient temperature and relative humidity, providing additional information about indoor environmental conditions.
Typical applications: Offices, laboratories, warehouses, indoor environmental surveys and building inspections.
Intelligent Data Recording and Management
The AIRATOM air quality meter supports data recording for users who need to review measurements over time.
Data Logging
Stores up to 10,000 groups of recorded data.
Supports configurable recording intervals, subject to the available settings.
Allows historical readings to be reviewed for environmental analysis.
Supports CSV export to a computer for further processing.
Includes a function to clear stored historical records.
Alarm Configuration
Users can configure alarm thresholds for supported parameters. When a reading exceeds a configured threshold, the device can provide an alert according to its available alarm settings.
Alarm thresholds should be selected according to the application and applicable measurement guidance. An alert is not, by itself, proof that an environment complies with a regulatory limit.
Calibration and Measurement Adjustments
The supplied information describes manual adjustment options for selected measurement values and automatic CO₂ calibration. Calibration should be performed according to the manufacturer's instructions and suitable reference conditions.
Power Management and Connectivity
Rechargeable, removable 18650 lithium-ion battery.
Type-C charging interface.
Automatic screen-off setting to help conserve battery power.
Date and time display for recorded measurements.
Firmware update support, subject to the manufacturer's supported update method.
Applications of the 5 Channel Air Quality Meter
Homes and Residential Buildings
Monitor selected indoor air quality indicators and environmental conditions in living rooms, bedrooms and other occupied spaces.
Offices and Commercial Buildings
Assess CO₂ levels, particulate matter and other available parameters during indoor environmental inspections.
Schools and Educational Institutions
Monitor indoor environmental conditions in classrooms, libraries and common areas.
Hospitals and Healthcare Facilities
Support indoor environmental assessments in appropriate non-clinical monitoring applications. This device should not be treated as a substitute for specialised medical or infection-control instruments.
Laboratories and Research Facilities
Record selected environmental measurements for research, testing and comparative air quality studies, subject to the instrument's performance and calibration requirements.
Factories and Warehouses
Conduct portable environmental checks in workspaces and storage areas where the measured parameters are relevant.
Building Inspection and Renovation
Check selected indoor air quality indicators following renovation, painting, furniture installation or other activities that may affect indoor environments.
Environmental Monitoring and HVAC Commissioning
Support preliminary air quality surveys, ventilation assessments and new air system commissioning checks. Regulatory compliance testing may require approved methods and calibrated reference instruments.
Operating and Maintenance Guidelines
To help maintain consistent operation, follow the manufacturer's instructions and these general care practices.
Before measurement
Inspect the instrument for visible damage.
Ensure the sampling inlet is clear of obstructions.
Check the battery charge before beginning an inspection.
Allow approximately 10 minutes for warm-up, as suggested in the supplied information, and follow any model-specific stabilisation requirements.
During use
Keep the air inlet unobstructed.
Avoid exposure to liquid, condensation and excessive dust accumulation.
Use the device within its specified operating temperature and humidity limits.
Record the measurement location, time and relevant environmental conditions when performing surveys.
After use
Clean the outer housing with a soft, dry cloth.
Review and export recorded data when required.
Clear historical records only after confirming that important data has been backed up.
Store the instrument in a clean, dry location.
Long-term care
Follow the recommended battery charging and storage procedure.
Arrange calibration or sensor servicing according to the manufacturer's schedule.
Avoid high temperatures, excessive humidity and strong electromagnetic interference.
Contact the supplier if readings remain abnormal after basic troubleshooting.
Frequently Asked Questions (FAQs)
1. What does a 5 Channel Air Quality Meter measure?
The product family is specified to measure CO₂, TVOC, PM1.0, PM2.5, PM10, temperature and humidity, with CO and model-dependent HCHO measurement. AQI display is also listed. Confirm the exact measurement functions available in the selected model.
2. What is the difference between HZ-8108, HZ-8109 and HZ-8110?
According to the supplied specifications, all three models measure CO₂ and TVOC. HCHO measurement is listed for HZ-8109 and HZ-8110 but not for HZ-8108. Confirm any additional differences with the supplier.
3. Can this meter measure PM2.5 and PM10?
Yes, PM2.5 and PM10 measurement ranges are included in the supplied specifications. Confirm that these functions are supported by your selected model.
4. Does the instrument support data logging?
Yes. The supplied specifications state that the instrument can store up to 10,000 groups of recorded data and supports CSV data export to a computer.
5. Is the air quality meter portable?
Yes. It weighs approximately 345 g and measures 222 × 80 × 46 mm, making it suitable for portable inspection work.
6. What is the power supply?
The device uses a removable 18650 lithium-ion battery rated at 2200 mAh and has a Type-C charging interface specified at 5 V / 2 A.
7. Can the meter be used for industrial monitoring?
It can support portable environmental checks in suitable industrial settings. Confirm the operating environment, measurement requirements and sensor suitability before use. It should not be assumed to be an intrinsically safe instrument or a certified gas safety alarm.
8. Is this meter suitable for regulatory compliance testing?
It may support preliminary monitoring and environmental assessment. Formal compliance testing may require instruments with specific approvals, calibration traceability, prescribed sampling procedures and regulatory acceptance.
Why Choose AIRATOM for Air Quality Monitoring?
AIRATOM provides air quality monitoring solutions for indoor environmental assessment, industrial applications and environmental measurement requirements. The 5 Channel Air Quality Meter combines multiple measurement functions, a colour display, portable operation and data logging in a single instrument.
Its model options allow buyers to select a configuration based on the parameters they need to measure. Before ordering, users should verify the available sensors, measurement specifications, calibration requirements and data export functions for their chosen variant.
